Molbio Gene Mathematica System
A High-throughput Genotyping System, which includes HCSCI Arrayer, the Automatic Liquid Dispensing and Handing Workstation, HCSCI Cycler, the High-throughput Water Bath Thermal Cycler, HCSCI Scanner, the High-speed Fluorescence Scanner and supporting software and consumables, and is compatible with TaqMan, KASP and other typing reagents.

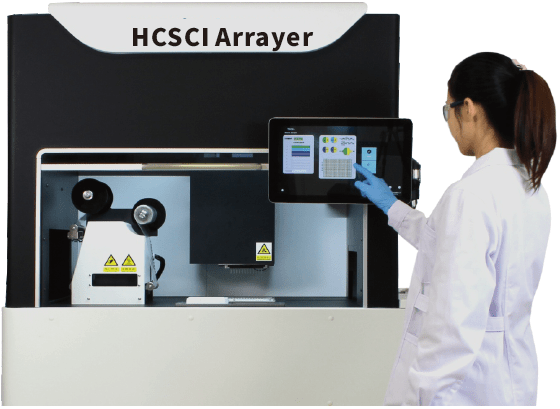

HCSCI Arrayer
Low Reaction Volume
- As low as 2µL reaction each well
- 90% cost saving comparing to regular 20µL reactions
High Throughput & Fully Automated
- As fast as 3 mins preparation each 384 microplate
- Up to 100k rxns per day
- Automated sample transferring
- Contact-free high speed reagent dispensing
- Automated tape sealing by instant heating
High Clarity Washing
- Automated tips washing system, combined with ultrasonic module
Module Design
- Flexible solutions: Provide complex experimental solution with multiple sites and multiple samples.
HCSCI Cycler
Automated High-throughput Water Bath Thermal Cycler
- 20x 384 microplates in a single batch, and flexible module design.
- Can realize rapid temperature change and precise control, thereby shortening the cycle time and improving the amplification efficiency.
Intuitive User Interface
- Equipped with a touch panel, fully functional and easy to operate.
- Can monitor the process and the running state through the interface. Provide reports and log files for easy query.
- Also supports monitoring and notification of the Mathmatica Cycler from a remote computer.
HCSCI Scanner
Ultra-high Speed Read - 5 sec/plate
- Full-field scanning technology.
- High-throughput detection, high speed CCD imaging module capturing full plate within seconds.
High sensitivity response
- The fluorescence signal as low as 1µL reaction system can be accurately captured.
Multichannel capturing
- Multiple capturing channels can be freely matched to cover the full range of visible light.
Efficient management system
- Qr Code management, with Mathmatica Master software, can achieve accurate and efficient management of experimental data.
Easy operation page
- Wide touch screen control panel for simple operation and clear results.
HCSCI Master
PowerfuI Software
- Automated data collection and analysis
- Compatible with LIMS system to store and manage huge amount of data
- Samples and consumable tracking through the whole process
Data Management
- Quickly obtained the original test data of Gene Mathmatica series equipment, and automatically uploaded to the system server for storage, so as to query and edit.
Data Analysis
- It provides efficient automatic genotyping assistance, which can quickly provide accurate and reliable results.
