Molbio Gene Smart System
A fully automatic multi-locus genotyping system which can truly realizes "sample in, result out". The integrated design highly integrates the functions of sample purification, reaction system construction, qPCR and data analysis, and can support end-point PCR and real-time quantitative PCR. The system can realize the flexible combination scheme of various samples and reagents to fulfill the detection requirements of different throughput.
Features and Benefits

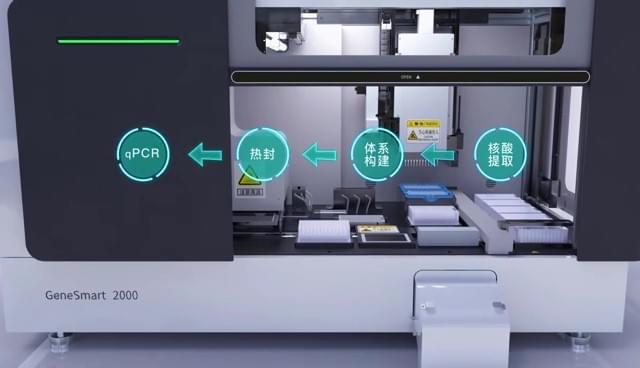

Module Design
Flexible combination, can carry out independent module operation including: sample purification, sample replication, reagent dispensing, system configuration, heat seal, qPCR etc.

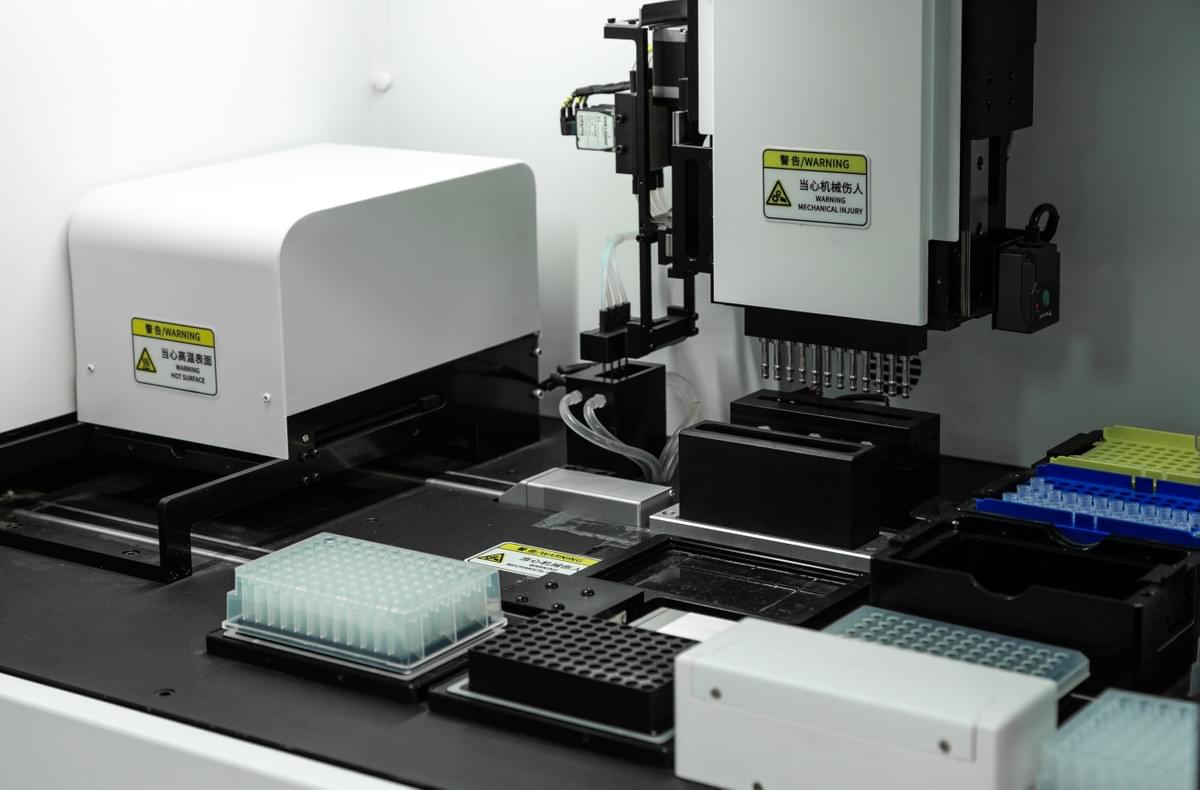

Automated Purification
Using the membrane adsorption method, support the original samples directly on the machine, and the purification is fully automatic. 12 samples can be purified at a time, the max purification is 96 samples /80min.
Flexible Reaction
3-50µL reaction per well, fulfill various applications.

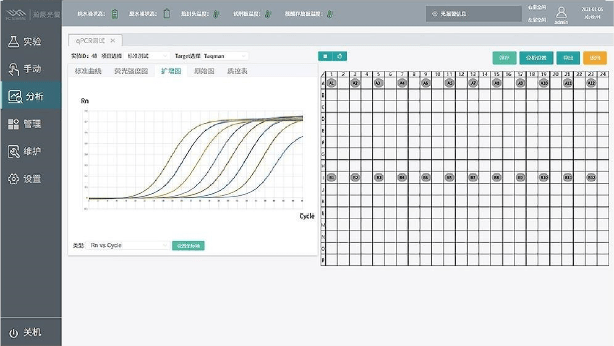

Real-time Fluorescence Quantitative
The system supports both end-point PCR and real-time fluorescence quantitative PCR.
Detection Throughput
Max 384 reactions/hour
Up to 64 markers per plate
Up to 96 samples per plate

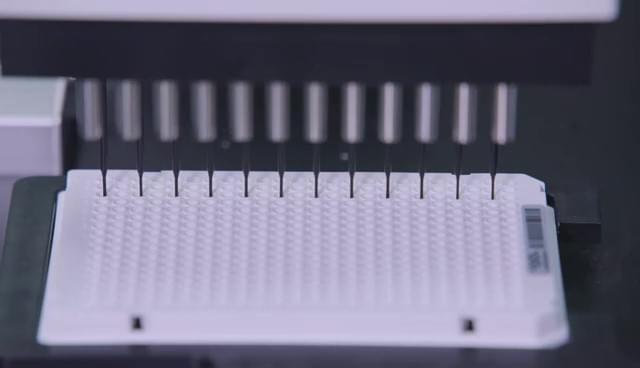

Fluorescence Scanning
The fluorescence signal of as low as 5µL reaction can be accurately captured, and complete scanning of 384-well only 3-5s.
